SLIM-LINE CONNECTORS
CONNECTORS & RECEPTACLES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
SLIM-LINE CONNECTORS (continued)
61
INSERTS
Inserts are molded of high-strength plastic, and are
completely interchangeable between plug and receptacle
housings at any time. Inserts are keyed to housings, and male
and female inserts are polarized to prevent mismating.
PIN/CONTACT CONFIGURATIONS:
SPECIFICATIONS
MATERIALS
Receptacle Housings : Die-cast zinc, nickel-plated.
Cord Plug Housings : Copper alloy, nickel-plated.
Inserts : Glass-reinforced thermoplastic. UL 94 V-0.
Female Contacts : Copper alloy, silver-plated, solder lug type.
Pins
2
3
4
5
Contacts
2
3
4
5
Contacts (Shunts)
2 (N.C. Shunt on each contact)
3 (N.C. Shunts on contacts 1 and 3)
4 (N.C. Shunts on contacts 1 and 4)
_
Pins : Copper alloy, silver-plated, solder cup type.
Cable Clamp, Strain Relief, and Mounting Hardware :
Steel, plated. Latch : Steel, plated.
ELECTRICAL
Current Rating : 5 Amps carry only.
? Add an “S” to end of part number for shunts. Special order only.
Insert is installed from front, and the captive latch spring locks
insert to housing. To remove insert from receptacle, depress
latch spring and apply pressure to rear of insert ( DO NOT
APPLY PRESSURE TO TERMINALS ). On cord plugs, depress
latch spring and press in on strain relief to free the insert.
GROUNDING/SHIELDING
Housings shield internal connections and provide ground
(common) connections without using a pin/contact. On cord
plugs, ground lead (or shield) is connected to cable clamp. For
receptacles Cable Clamp, SL04 is ordered separately as a
special and installed. If desired, ground/shield connection may
then be made to clamp. When mated, a continuous, shielded,
low resistance path is made through the connector.
Part Number Item
MOUNTING
Cord Plugs: Plugs accept cables up to .281" (7.14 mm) diameter.
Receptacles: Flange mount type mounts in panels or chassis
up to .188" (4.78 mm) thick. .125" (3.18 mm) diameter holes
accept #4 machine screws or .125" (3.18 mm) diameter rivets.
Rear and front of panel types mount in “D”-shaped hole in panels
or chassis up to .219" (5.56 mm) thick. Hex nut ( SL01 ), lockwasher
( SL02 ), and flat washer ( SL03 ) are supplied for mounting.
CABLE CLAMP AND STRAIN RELIEF
Cord Plugs: Plugs are supplied with rugged cable clamps and
strain relief springs. Cable clamp serves two valuable functions: to
firmly hold cable to prevent pulling or twisting strains on soldered
terminations, and as a connecting point for ground (common) or
shield when grounding/shielding through the connector is
required.
Receptacles: Receptacles are not supplied standard with
cable clamp for strain relief. If grounding/shielding feature is
? SL01
? SL02
? SL03
? SL04
? SL05
Hex Nut
Lockwasher
Flat Washer
Cable Clamp
Strain Relief Spring
desired, separate Cable Clamp, SL04 , is installed on receptacle
insert.
MOUNTING HARDWARE
(Supplied with Series SL17 and SL18 receptacles)
SLIM-LINE CONNECTOR PART NUMBERING SYSTEM
SERIES
HOUSING TYPE
Number of
Contacts
Gender
Options
SL
SLIM-LINE
NONE
2
M MALE
S
WITH SHUNTS
10
17
18
40
41
RECEPTACLE, FLANGE MOUNT
RECEPTACLE, REAR MOUNT
RECEPTACLE, FRONT MOUNT
CORD PLUG WITH COUPLING RING
CORD PLUG WITHOUT COUPLING RING
3
4
5
F FEMALE

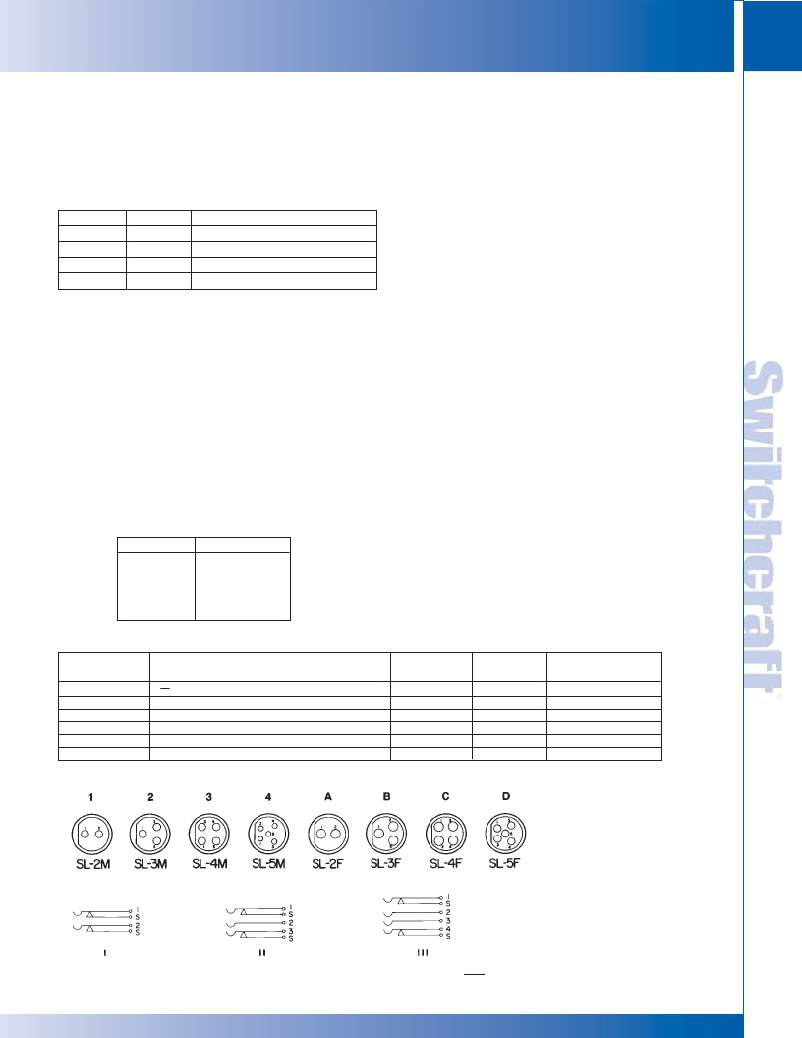

PIN AND CONTACT ARRANGEMENTS
SCHEMATIC CIRCUITS
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
